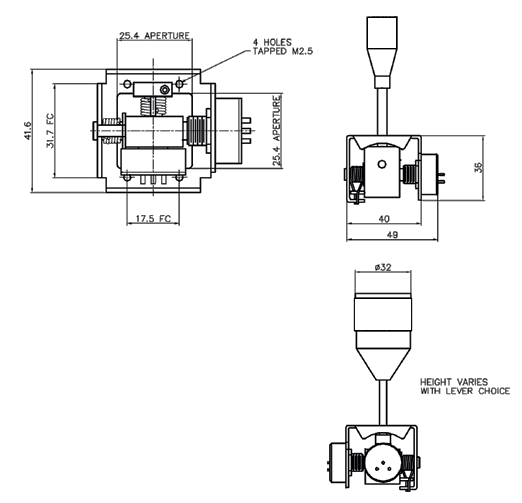

Potentiometer Joystick Performance Characteristics and Data ELECTRONIC SPECIFICATION P Series Joysticks Resistance Track Angle Power Rating    Linearity Track Material Output Smoothness Permissable Load 10k, 5k - both ± 20% 300o (Standard), 60o (Optional) 1.0 Watt @70oC. De-rate to 0 @ 125o (300o track) 0.2 Watt @70oC. De-rate to 0 @ 125o (55o track) ±2% Plastic film 0.1% max Higher than 100k Ohms for long life Some of the characteristics depend on specification. Please contact us via the technical enquiry form, or ring our sales team on +86 (0) 592 5747201, 8808997. Dimension Drawing
