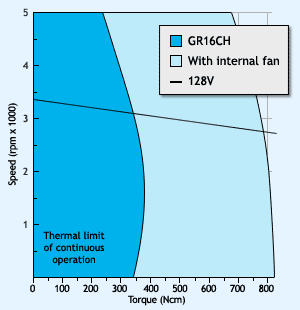

The GR16CH Motor These general performance values are typical and can be more precisely qualified upon receipt of customers' specific application requirements. MOTOR RATINGS SYMBOL UNIT GR16CH Power Torque Speed Voltage Current Continuous Stall Current P T N V I IS Watt Ncm rpm Volt Amp Amp 320 334 3000 128.7 9.55 5.7 MOTOR CONSTANT SYMBOL UNIT GR16CH Torque EMF Damping Friction Torque Total Inertia Terminal Resistance @5A Kt Ke Kd Tf J Rm Ncm/Amp V/krpm Ncm/krmp Ncm kg.cm2 Ohms 37.3 39.0 6.44 7.7 0.95 5.93 GR16CH Performance Graph
